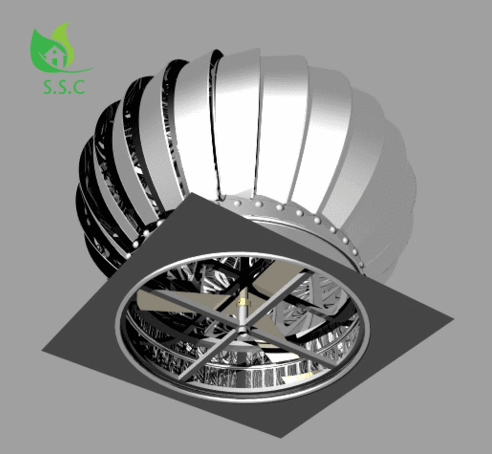

NATURAL AIR VENTILATOR
Natural Air Ventilator, offered by Shreeji Sales Corporation is factory-made exploitation quality approved basic material that adds sturdiness prime the merchandise. Our Natural Air Ventilator is subjected to rigorous quality tests before its final dispatch. We've got the potential to deliver orders for the Ventilator inside the secure time-frame. A well-designed Natural Air Ventilator takes advantage of the wind to make a positive flow through the throat of the ventilator.
It is altogether non-conventional methodology of ventilating system. Its methodology of operation is completely totally different from the standard methodology of ventilators like motorized exhaust fans and passive ventilating system like jack-roofs and ridge ventilators.
This system doesn't need Energy like Electricity, Generator, Solar Systems, U.P.S or the other battery make a copy.
It is completely leak proof, noise proof and setting friendly.
| VENTILATOR |
| Throat Dia |
24" INCH (610MM) |
| Outer Dia |
30" INCH |
| TOP COVER |
| Top Cover Size |
510 MM |
| Thickness |
5 MM |
| MOC |
Stainless Steel |
| BOTTOM PLATE FOR BLADE ATTA CHED |
| Width |
505 MM |
| Thickness |
5 MM |
| MOC |
Galvanised |
| BLADE MOUNTING RING |
| Thickness |
5 MM |
| Width |
74 MM |
| MOC |
Galvanised |
| BLADE MOUNTING RING |
| Thickness |
5 MM |
| Lenth |
280 MM |
| MOC |
Mild Steel |
| OD |
30 MM |
| BERING |
| Size |
6001 ZZ |
| Make |
HCH |
| BOTTOM RING |
| Width |
100 MM |
| Thickness |
5 MM |
| MOC |
Stainless Steel |
| MOUNTING BASE PLATE |
| Size |
1650 MM |
| Thickness |
2 MM |
| MOC |
FRP (FIBER) |
| SHAPTING |
| Thickness |
125 MM |
| Length |
280 MM |
| MOC |
Mild Steel |
| BLADE |
| Thickness |
5 MM |
| Length |
430 MM |
| Width |
70 MM |
| MOC |
Hindalco Make Aluminium |
| No. of Blade |
42 No. |
